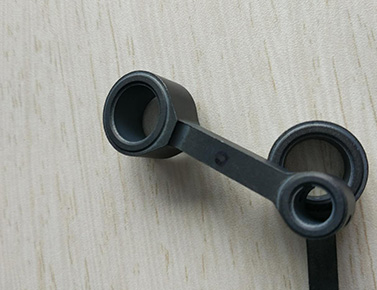

1.Material: SINTER IRON, C=0.3-0.6%, Cu=2.5-3.5%, Mn<0.08%, S=0.3-0.5%, others<0.5%, Fe=Rest,

 2.All other informations see Sint D11 according DIN 30910-4

 (K) 8 - Hardness 150-220 HV5, according DIN EN ISO 4498; (after steam treatment) (C) 9 - 3.Resistence to tension Rm min.: 250 N/mm² / 250 N/mm² ( before/after steam treatment)

 (G)10

4.Sinter density 6.8 0.2g/cm³ / 7 0.2g/cm³ (before/after water steam treatment (E)11 - Porosity 11 2% / 0% (before/after steam treatment) (C)12 - Elongation at break min.:1% / 1% (before/after steam treatment)
